Key Features
-

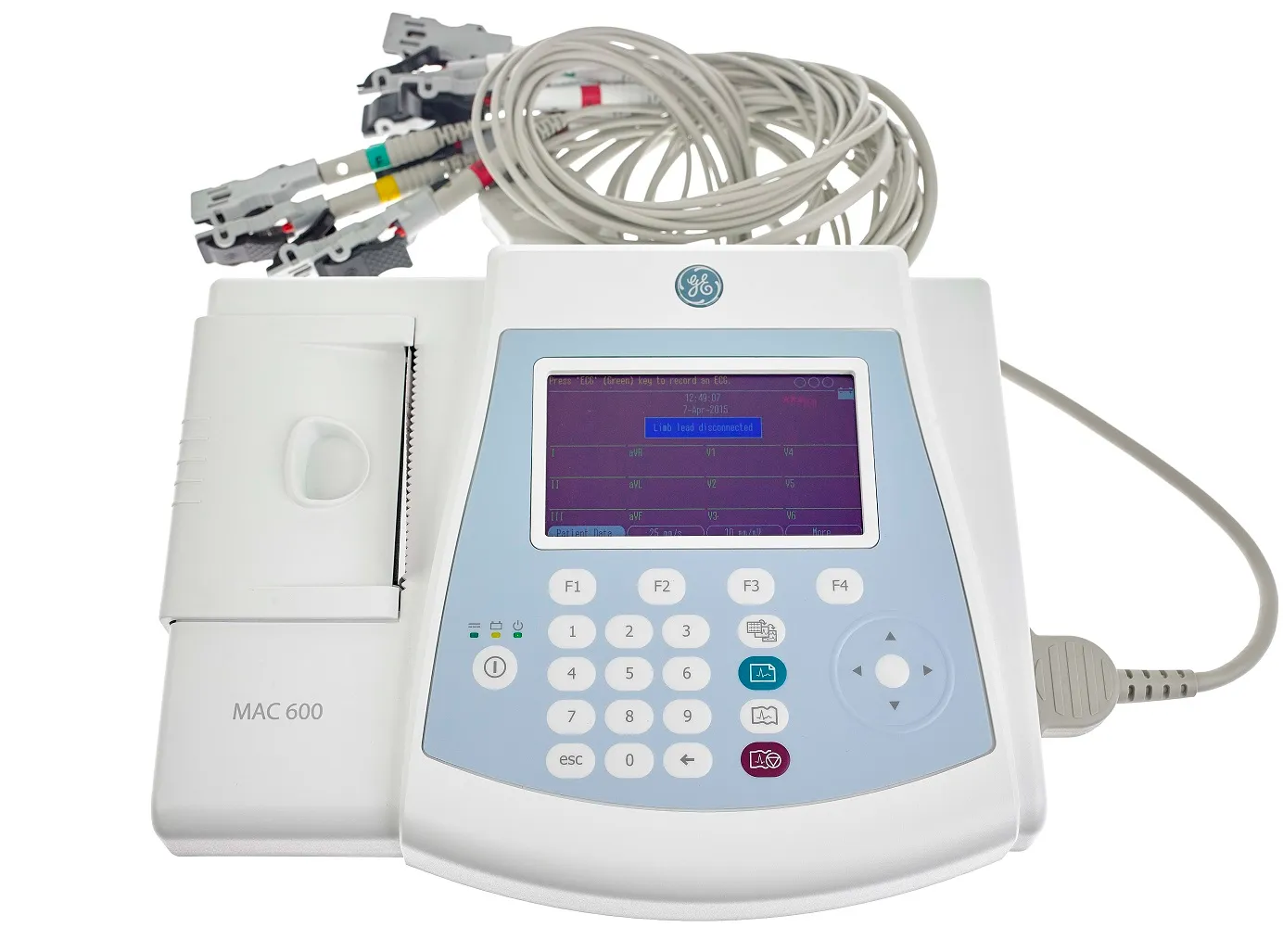

Simultaneous 12-lead acquisition: Displays full ECG in a 4×3 layout on a 4.3″ color screen with Marquette 12SL analysis numed.co.uk+6biomedsuppliers.com+6hospitalstore.com+6.
-
HookUp Advisor™: Guides clinicians to achieve accurate lead placement and optimal signal quality apnnews.com+8sknlaos.com+8sknlaos.com+8.
-
One-touch operation: Intuitive keypad enables rapid initiation—fully operational within ~7 seconds hospitalstore.in+9iacl.ie+9colmed.in+9.
Printing & Storage
-
Thermal printer: Automated 3-channel rhythm + 12-lead strips on 80 mm Z‑fold paper sknlaos.com+10hospitalstore.com+10praxisdienst.com+10.
-
SD card (optional): Save ECGs as PDF files for electronic sharing and documentation reddit.com+12iacl.ie+12economed.co.uk+12.
Mobility & Battery
-
Built-in lithium-ion battery provides power for up to 250 ECGs per charge (~3 hours use) numed.co.uk+12praxisdienst.com+12winterthurmedical.com+12.
-
Weighs ~1.2 kg, compact size (8.1 × 26.3 × 20.8 cm)—easy to carry across wards or homes colmed.in+6iacl.ie+6economed.co.uk+6.
Interpretation & Connectivity
-
Marquette 12SL algorithm: Clinically validated ECG interpretation for adults and pediatric patients iacl.ie+10praxisdienst.com+10hospitalstore.com+10.
-
PC integration: Export data to GE’s MUSE system or CardioSoft; SD card enables digital workflows reddit.com+5apnnews.com+5duomed.com+5.
Safety & Compliance
-
Compliant with IEC 60601-1, Class I CF, and defibrillation-proof standards .
-
Floating input circuit, low patient leakage (< 10 µA), and robust ECG filtering ensure patient safety and measurement quality .
Workflow & Usability
-
Auto capture: Standard 10-second ECG with heart rate range 30–300 bpm (±10%) numed.co.uk+9hospitalstore.com+9economed.co.uk+9.
-
On-screen review removes need to immediately print—saves paper and supports eco-friendly practices
